[WI-BOX] How to program the VDS address in WI-BOX ref 3266 in installations with current terminals or v6.0 or earlier.

[WI-BOX] How to program the VDS address in WI-BOX ref 3266 in installations with current terminals or v6.0 or earlier.

In VDS installations with monitors or telephones whose version is current or v6.0 or earlierwe can program the vds-address on the WI-BOX by following the steps below:

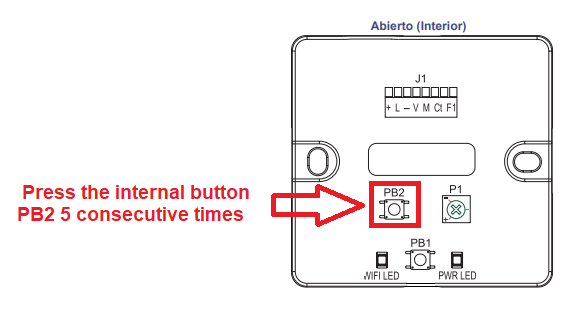

1-. Perform a factory reset of the WI-BOX module. Press the internal button PB2 5 consecutive times.

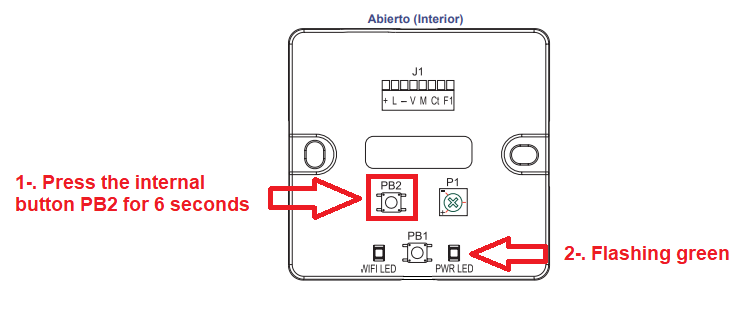

2-. Next, press the internal button PB2 for 6 seconds. Release and check that the right LED flashes green.

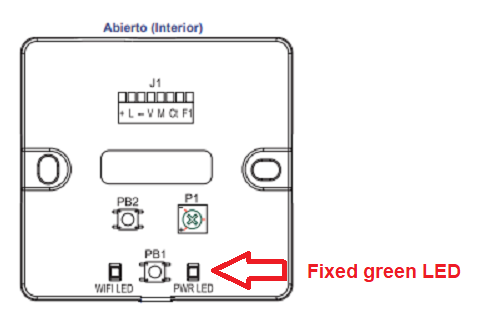

3-. Finally, generate a call to the apartment from the panel VDS. Solid green LED.
