[WI-BOX] Compatibility with terminals ADS/VDS.

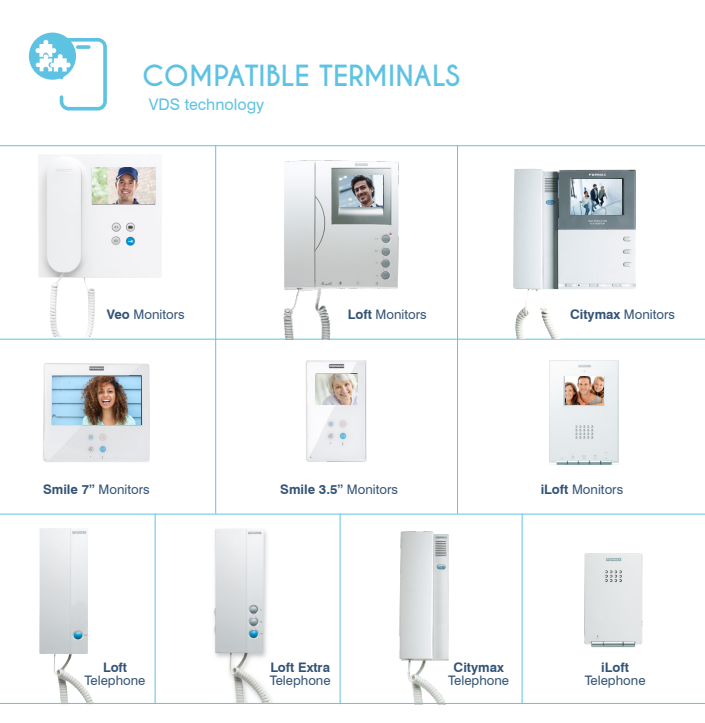

The WI-BOX module ref 3266 allows us to have the functionality of call forwarding to mobiles in VDS installations whose installation is 3 wires + coaxial in video door entry and 3 wires in door entry. Attached is a table showing the VDS compatible terminals:
Important the device reference or label has to indicate ADS/VDS

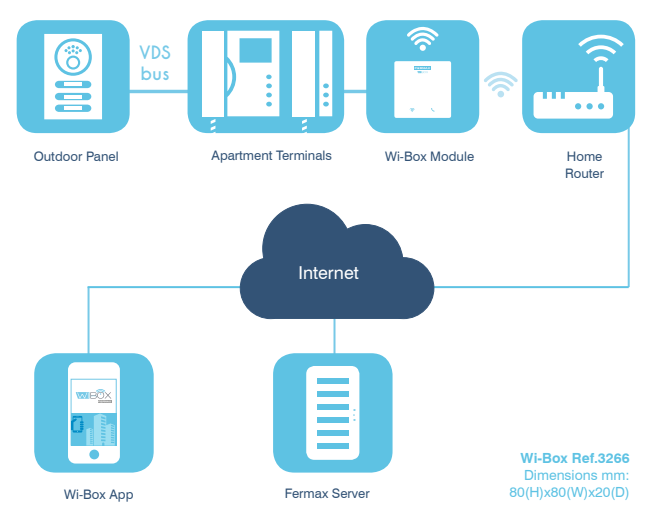

Installation: We will install the WI-BOX module ref 3266 next to your home terminal. It includes a cable with molex connector (+ L - V M Ct F1) which must be connected to the Wi-BOX module and the other end must be screwed to the connector of the monitor, as indicated in the instructions that you can find on our website.
It is important to have WIFI connectivity in the apartament.
