Why doesn't my 1394 monitor ring when it receives a board call?

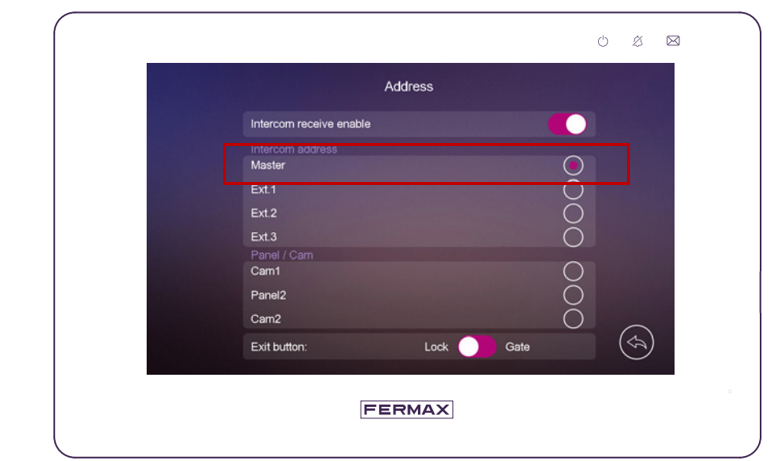

In installations with only one monitor in the kit, we recommend checking the configuration of the monitor as it should be configured as MASTER.
Also, check the MUTE indicator if it is active the LED

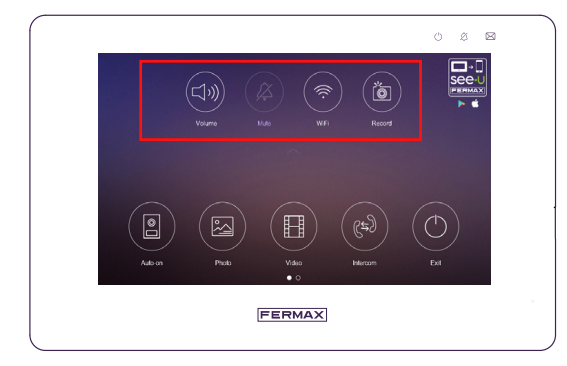

indicates that it has been muted. To re-activate it, access the main menu of the touchscreen monitor by pressing anywhere on the monitor and once active, slide down the top menu.
and we will see the Mute icon to press and deactivate.
