Which door release can I connect to the see-u kit?
The electric lock release must be of low consumption direct current, less than 250mA Fermax recommends ref. 29588 DOOR OPENER 300N-412-S if the grille or entrance door has a bolt entry, you must change the trim plate of the electric lock release and also add ref. 2975 ARMADURA LARGA G.

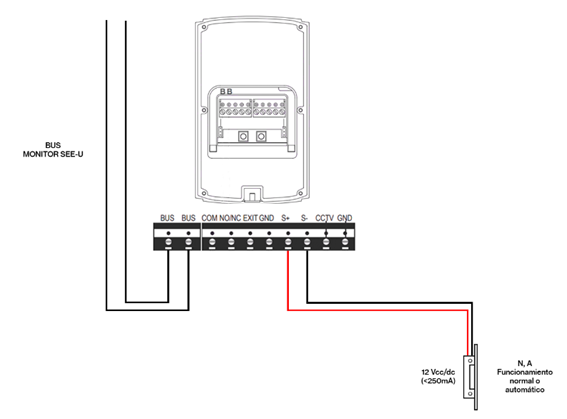

The connection would be as follows.
