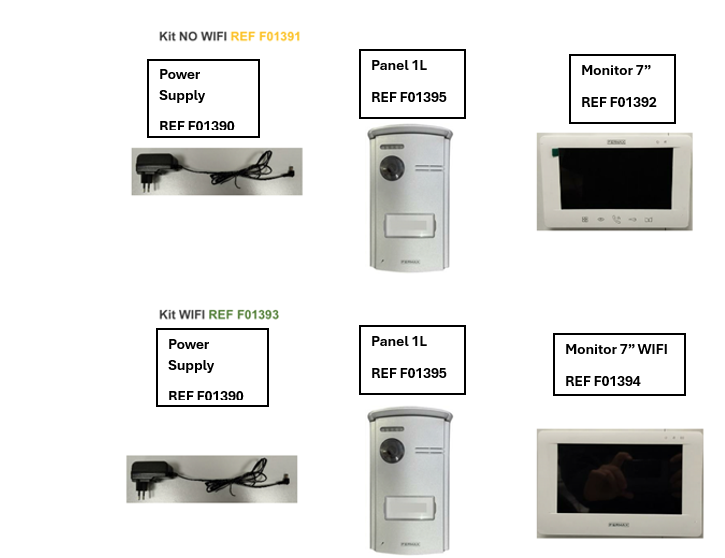

What are the part numbers of the individual devices if I want to extend my kit?
The reference of the NON WIFI monitor is ref. 1392 (requires source 1390).
The reference of the WIFI monitor is ref. 1394 (requires source 1390)
The reference of the door station is ref. 1395
The recommended door opener part number is ref. 29588 DOOR OPENER 300N-412-S MAX (12Vdc/180mA)
The long armature (armature with bolt input) for the recommended electric lock release is ref. 2975 LONG ARMOUR G.
If it is necessary to connect an AC electric lock release to the kit, we will add an additional relay ref. 2013 if they also have a gate, otherwise we will use the auxiliary relay output of the kit and we will only need to add the AC power supply ref. 4800 to feed the electric lock release.
