[WAY-FI PLUS] WAY-FI PLUS KIT Installation Architectures
The Way-Fi Plus kit ref 1571 allows two types of installation:

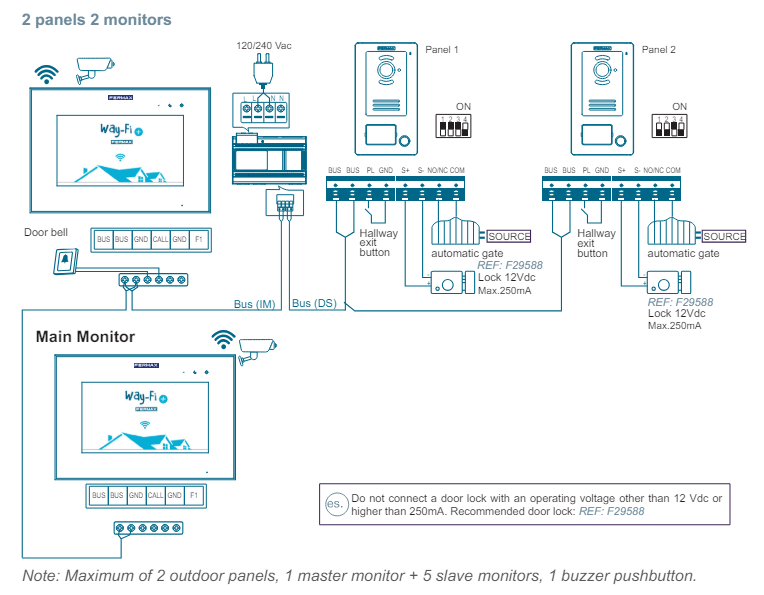

1-. Cascade installation: this consists of moving the installation of the monitors from one monitor to another.
1-. Cascade installation: this consists of moving the installation of the monitors from one monitor to another.

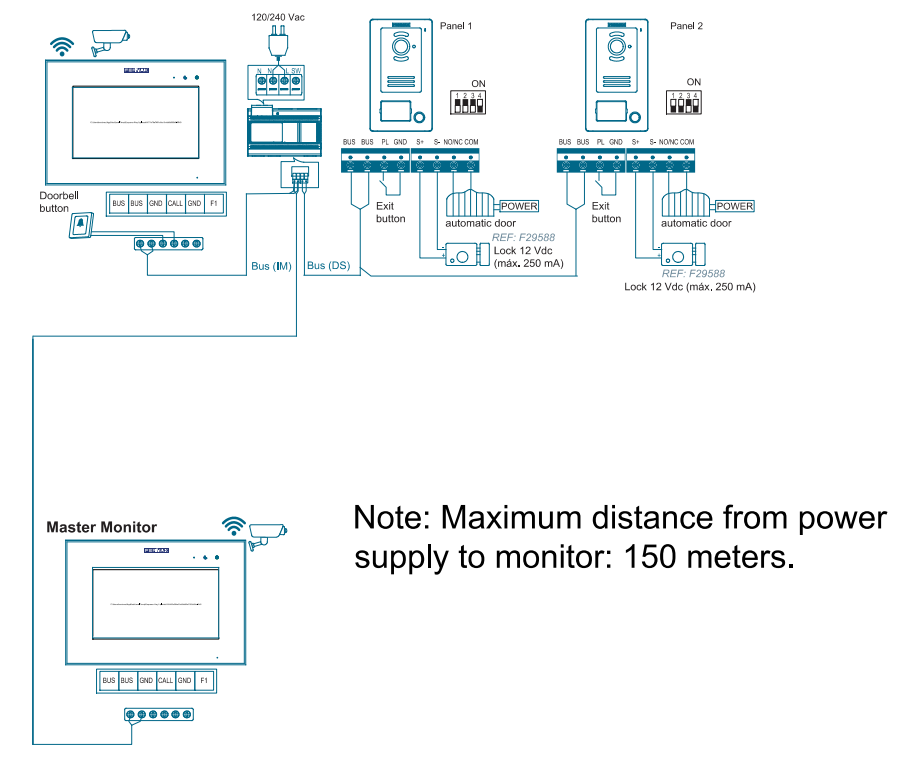

2-. Installation in bifurcation or star: it is possible to install the
monitors in a star configuration from the power supply. In this case,
we must take into account that the maximum distance from the power
supply to each monitor is 150 metres.
