[WAY-FI PLUS] Updating the main monitor's firmware via the Way-Fi Plus app

[WAY-FI PLUS] Updating the main monitor's firmware via the Way-Fi Plus app

To update the firmware of the panels (WAY-FI PLUS 1L VIDEO BOARD KIT, ref. 1573) and monitors (WAY-FI PLUS 7" MONITOR KIT, ref. 1572) in the WAY-FI PLUS kit (ref. 1571), follow these steps to update the main monitor via the Way-Fi Plus app.

When you connect to the doorbell, receive a call or autoon, a message will appear stating that a new update is available; we will confirm this until the update has been successfully installed.

Warning
Following the update, the MASTER monitor has been updated and the firmware for the secondary boards and monitors has been downloaded.

To update secondary monitors and panels, follow these steps:

1-. MASTER monitor connected to Wi-Fi.

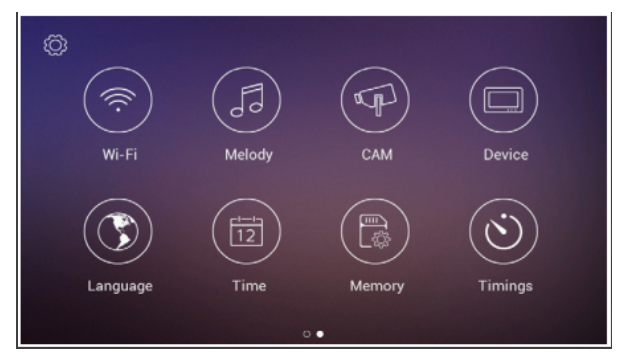

1.1 Tap anywhere on the screen to turn it on, and the home screen will display the following options:

1.2 Swipe the home screen to the left to open the settings screen and access the various settings.

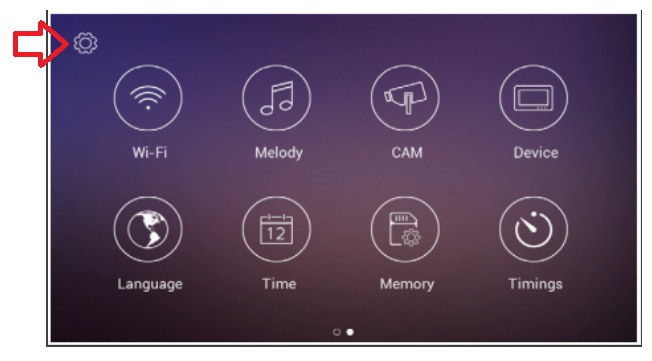

1.3 Next, tap the tool icon three times in a row to open the installer menu and access the advanced options.


Note: The number of devices that are out of date is displayed next to the tool icon.

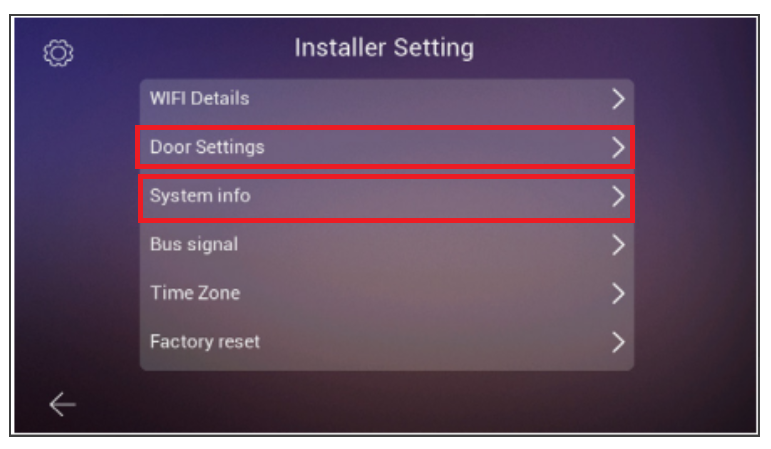

 1.4 Go to the ‘Door settings’ menu option to update the door panels, and go to ‘System information’ to update the monitors.



Note: The screen displays, within a red circle, the number of monitors and/or street signs that are not up to date.

1.5 Both options feature an update button.

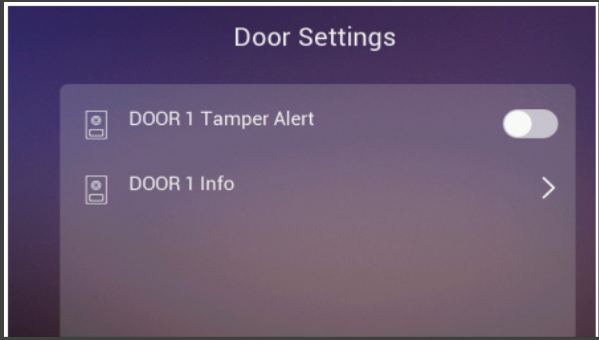

  1. Updating panel

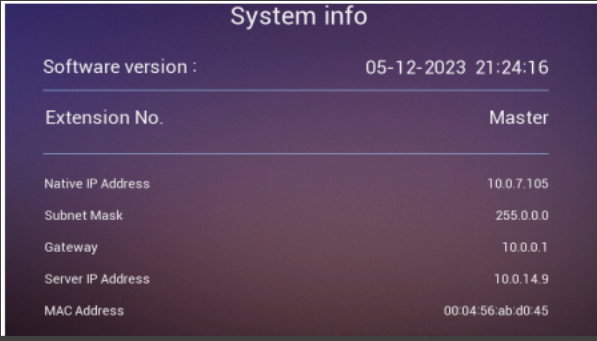

  1. Monitor update.  Both the MASTER and the secondary monitors.

Note: If you have secondary monitors, you must update the firmware on each monitor.

Warning
IMPORTANT: Do not disconnect the power supply during the update process.

Warning
IMPORTANT: After the update, reset the door panel and monitors.
