[WAY-FI PLUS] WAY-FI PLUS 7" 1L WAY-FI PLUS kit outdoor panel configuration ref 1571 for replacement.

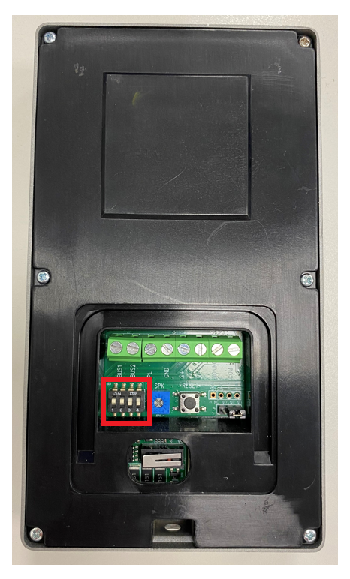

If in the WAY-FI PLUS kit ref 1571 we have to replace the outdoor panel ref 1573 we have to configure the dip-switches:
1. The dip-switch 1 has to be set as MASTER (ON).
2. The dip-switch 2 has to be set as PANEL 1 (ON).
In addition, the tamper switch, located on the back of the outdoor panel, must be pressed 5 times to download the master monitor's database and retrive the configuration.
