[WAY-FI PLUS] How to perform a reset on the panel and monitor of the Way-Fi Plus kit, ref. 1571.
To perform a reset (factory reset) of the panel and monitor of the Way-Fi Plus kit ref 1571, follow these steps:
RESET of the outdoor panel ref. 1573
1-. Disconnect the power supply.
2-. Set Dip switches 1 and 2 to ON.
3-. Power up the system.
4-. Press the Reset button for 5 seconds until you hear a beep.
Once the outdoor panel has been reset, we recommend performing a reset on the monitor as well.
RESET of the monitor ref. 1572

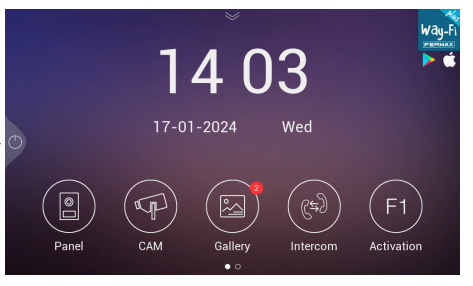

1-. Tap the screen to wake it from sleep mode (screen off), and the main page will display the following options:

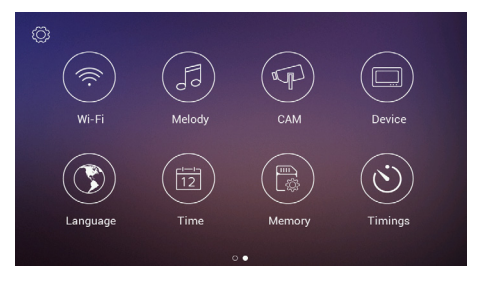

2-. Access the settings screen by swiping the main page to the left.

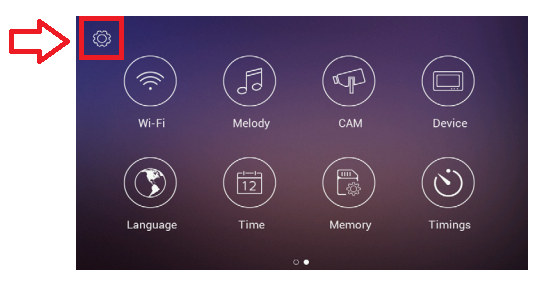

3-. Then, quickly press the tool icon three times, located in the upper left corner of the screen.

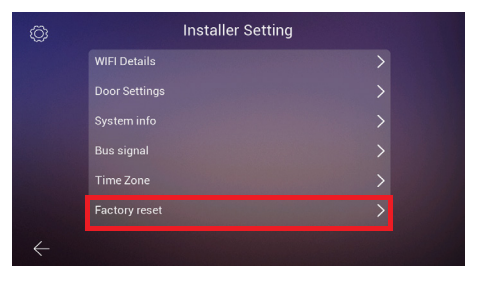

4-. Select the option “Factory reset?”

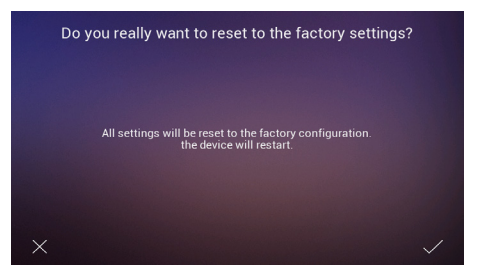

5-. When you select this option, it will ask if you want to proceed with the change, and it will be executed by pressing the
button. The monitor will then return to its default factory settings.
