[WAY-FI PLUS] How to enable the secondary door output on the Way-FI Plus kit monitor.

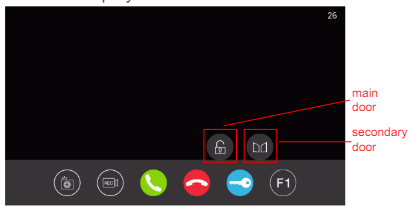

By default, the monitor of the WAY-FI PLUS kit ref 1571 has the secondary door option disabled. Well, in order to open the door from the monitor it shows the door opening options; main door and secondary door, we must give a time delay that by default is configured as 00 indicating that this output is disabled.

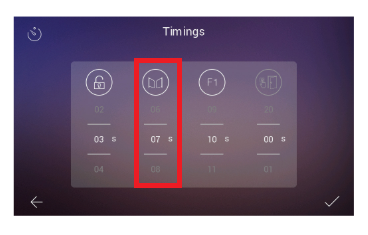

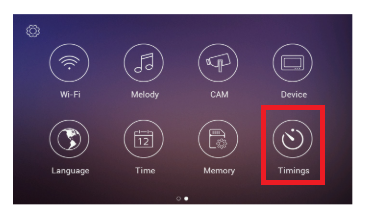

In order to activate the secondary door icon, we must access the different monitor settings, specifically the “Timings” option, by sliding the main screen of the monitor to the left.





The selected timing can be checked by clicking on each icon, which will cause the corresponding device to be activated.
