[SEE-U WIFI] How to modify the opening time on a VIDEO SEE-U WIFI KIT 7” 1L REF 1393.
The VIDEO SEE-U WIFI KIT 7’ 1L REF 1393 allows us to modify the door opening time and the relay opening time (gate opening) through the monitor. To do this, we will follow the steps below:

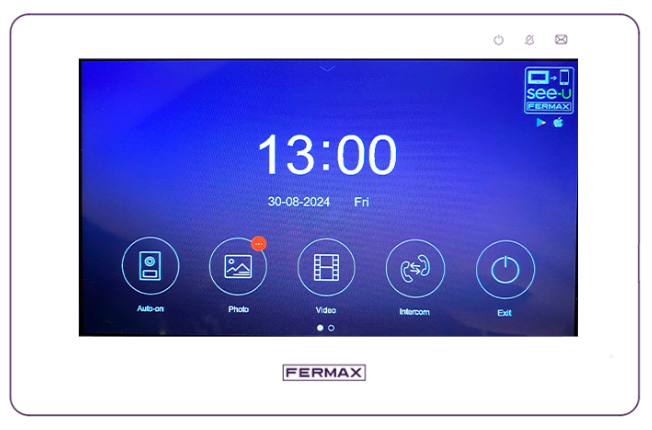

1-. Turn on the monitor screen.
Touching the screen activates it and shows the different monitor options.

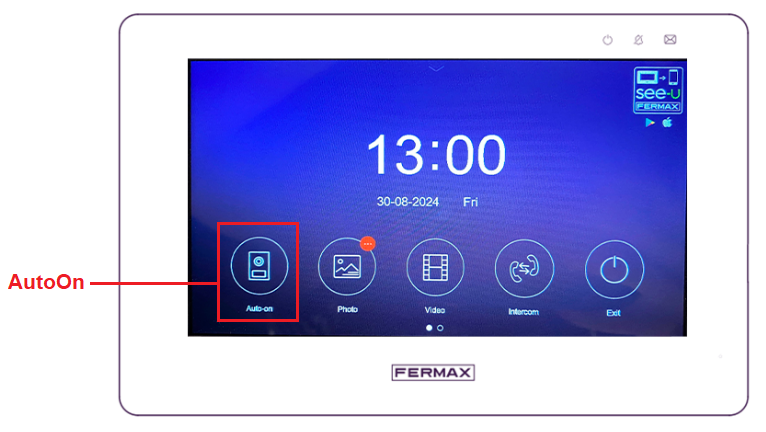

2-. Select the ‘AUTO ON’ option,

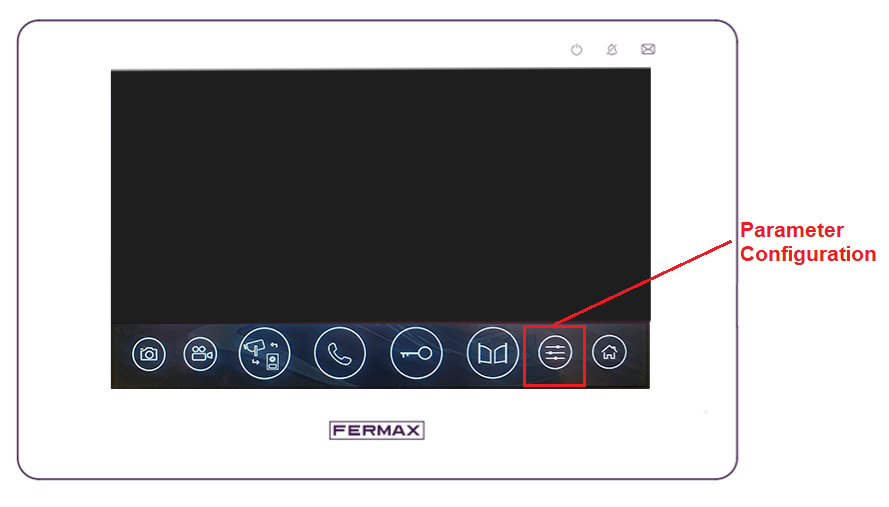

3-. Once the auto-start has been carried out with the panel, select the ‘Parameter configuration’ option.

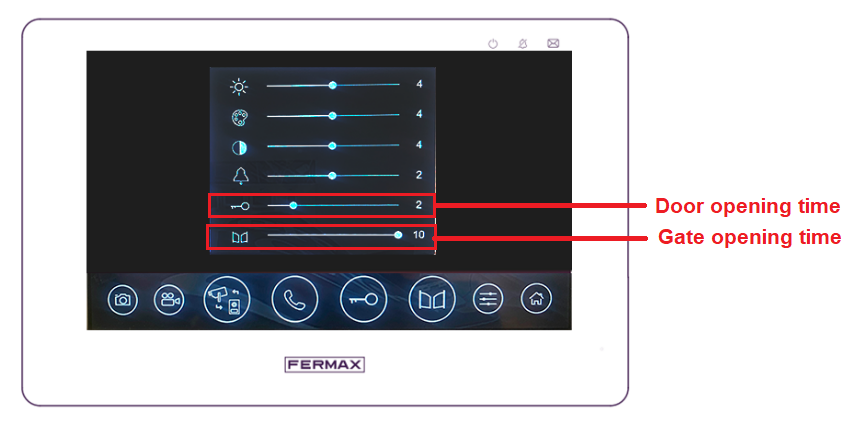

4-. Different configuration options appear, including the door opening time (1s to 10s) and the gate opening time (1s to 10s).
For more information, please find attached Advanced Manual for VIDEO SEE-U WIFI KIT 7’ 1L REF 1393.Related Articles
