[SEE-U WIFI] Automatic image capture activation in the SEE-U WIFI kit ref 1393
To activate automatic image capture on the SEE-U WIFI kit ref 1393, when a call is received on the monitor, follow these steps:
When you touch the screen, it activates and shows you the different monitor options.

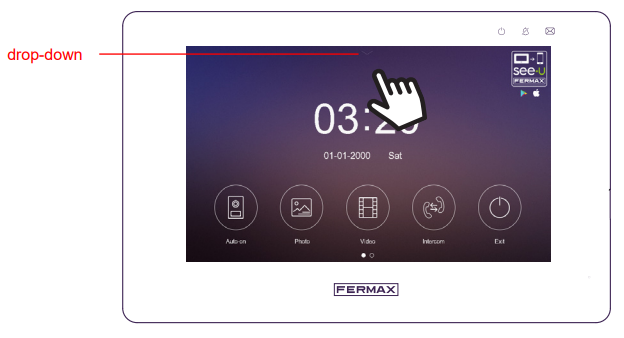

At the top of the screen there is a drop-down menu that shows additional information:

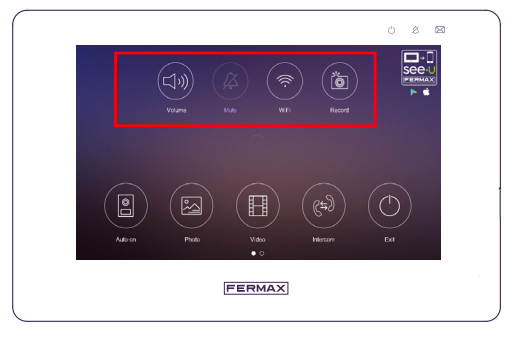

1. Slide the drop-down arrow down to reveal the following screen with the following additional functions:

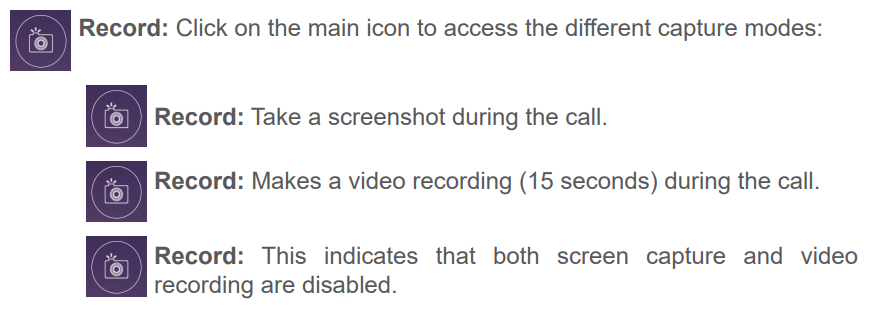

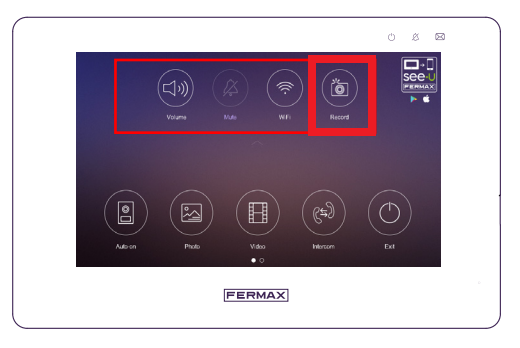

2. Select the record option. Pressing the button repeatedly will cycle through the different capture modes (photo/video).
Without SD memory, the monitor can store up to 100 photos and 10 videos lasting 15s each. A photo is 45 KB in size and a video is 2 MB. Internal storage: 80 MB for video and 10 MB for photos. Supports from 8 GB to 128 GB of external memory.
