[SEE-U] How to enable the CCTV camera in the SEE-U kit ref 1391.

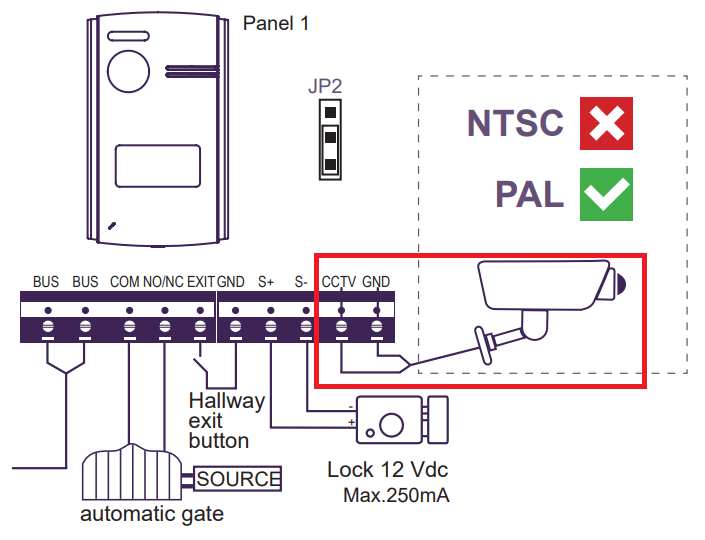

The SEE-U kit panel allows us to connect an analogue aerial camera between the CCTV and GND terminals.
Once the aerial camera has been installed on the outdoor panel, it must be enabled on the monitor, as it is disabled by default.
The image of the outdoor panel and the aerial camera can be shown from the monitor's auto-on button.
To enable the camera, follow the steps below:

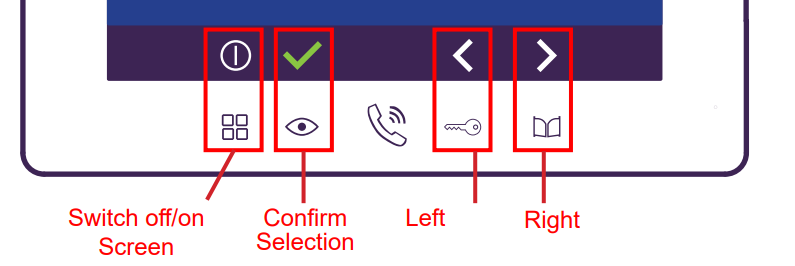

Remember that the buttons below correspond to what we see on the screen:
1-. Turn on the monitor screen by pressing the button
we move with the left/right arrows
through the different menu options to the ‘Parameter settings’ icon where you select it
2-. In the following menu that appears on the monitor screen, select with the button
the option ‘Additional settings’.
3-. Then we can scroll through the different menu options by pressing the button
on the monitor until we reach the aerial camera on panel 1.
4-. We will select the aerial camera option (panel 1) and enable it by pressing any of these buttons
on the monitor.
