How do I replace or add a monitor or panel in the Way-Fi Plus kit ref. 1571?
Related Articles
[WAY-FI PLUS] WAY-FI PLUS 7" 1L WAY-FI PLUS kit outdoor panel configuration ref 1571 for replacement.
If in the WAY-FI PLUS kit ref 1571 we have to replace the outdoor panel ref 1573 we have to configure the dip-switches: 1. The dip-switch 1 has to be set as MASTER (ON). 2. The dip-switch 2 has to be set as PANEL 1 (ON). In addition, the tamper ...[WAY-FI PLUS] WAY-FI PLUS KIT Installation Architectures
The Way-Fi Plus kit ref 1571 allows two types of installation: 1-. Cascade installation: this consists of moving the installation of the monitors from one monitor to another. 2-. Installation in bifurcation or star: it is possible to install the ...[WAY-FI PLUS] Configuration when adding or replacing a panel and/or monitors in a WAY-FI PLUS ref 1571 installation.

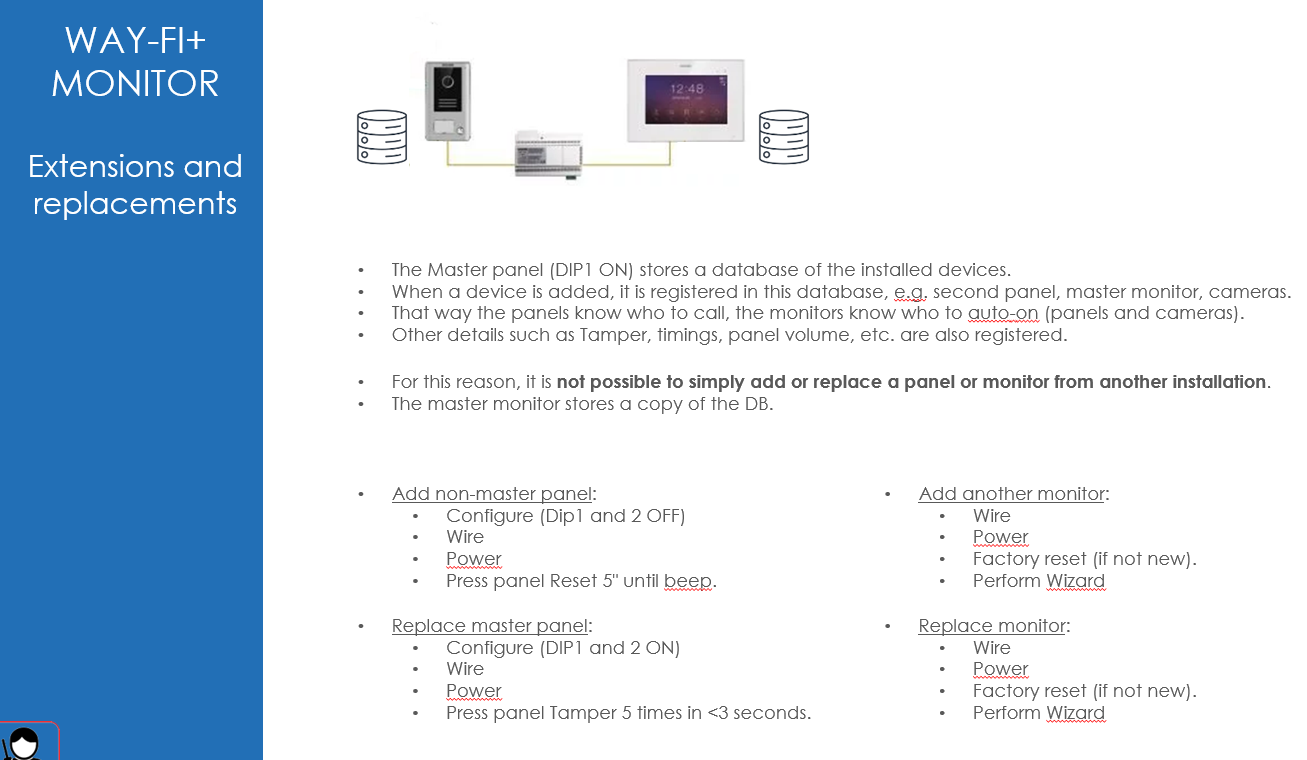

If in an installation of the Way-Fi Plus ref 1571 kit we need to add or replace a panel and/or monitor, we must make a record in a database that stores the MASTER panel of the installation. This means that the outdoor panels know who to call and the ...[WAY-FI PLUS] ‘CONNECTION FAILED’ when configuring the Way-Fi Plus kit monitor ref 1571.
If the following error is displayed when starting up the wayFi Plus Kit monitor ref 1571: ‘Connection failed’, this may be due to the following possible causes: 1-. Cable loose from the outdoor panel. The system does not detect the panel and ...Up to how many monitors can I add to my Way-Fi Plus Kit ref. 1571?
The kit allows up to 6 monitors ref.1572 in total (the kit monitor plus 5 additional monitors).
