How do I change the opening or activation time of my devices connected to the Way-Fi Plus kit ref. 1571?

How do I change the opening or activation time of my devices connected to the Way-Fi Plus kit ref. 1571?

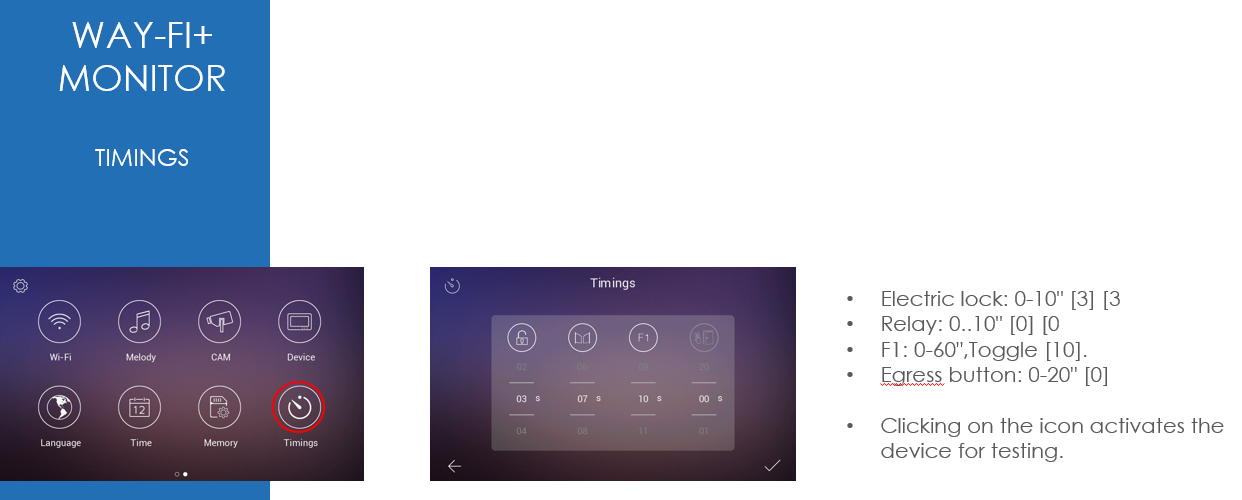

By entering the following menu on the monitor you can change the opening time of your devices.

Electric lock release time
Relay time
F1 time (auxiliary device if an auxiliary relay ref. 2013 is wired to the monitor) In 'T' mode pressing F1 activates and pressing it again deactivates the output.
The last icon is for the output push button
