[MEET KIT] If you have more than one street panel
To activate the additional panels, we need to check the following points:
- The street panels and monitors installed must be on the same physical network and have the same IP address.
- All panels will be configured as 1W PANEL, and both the monitor(s) and the panels must be in the same block number and apartment number.

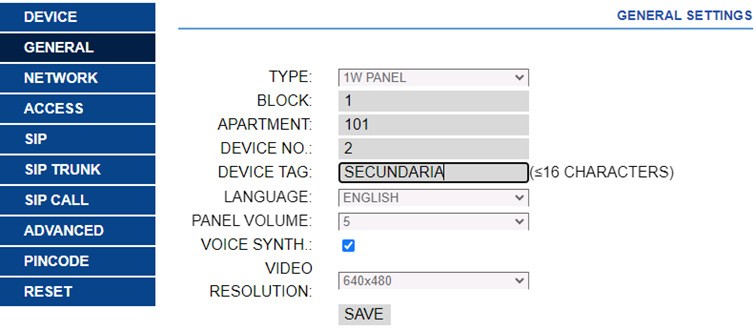

- Below we see the configuration of two 1-line MEET panels. Both are in Block 1 and apartment number 101, where we changed the equipment number and its TAG (name) to identify it.
- We can have up to 9 panels configured with the same apartment number, but the device number must be different from the other panels.
- Remember that each panel must have a different IP within the network range. We choose the available address as explained in the following video.
