[MEET KIT] If you have more than one MEET monitor connected to the Kit

[MEET KIT] If you have more than one MEET monitor connected to the Kit

To get started, we need to check the monitor settings by following these steps:

  • The panels and monitors must be on the same physical network and have the same IP address.

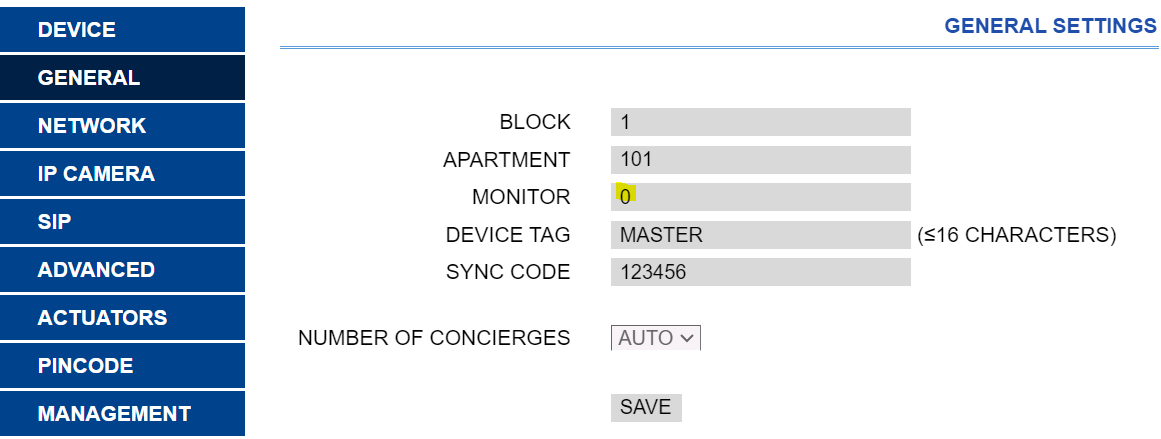

  • In the monitor's general menu, the main monitor is named 0 and this is the one we will later pair with the MeetMe app.

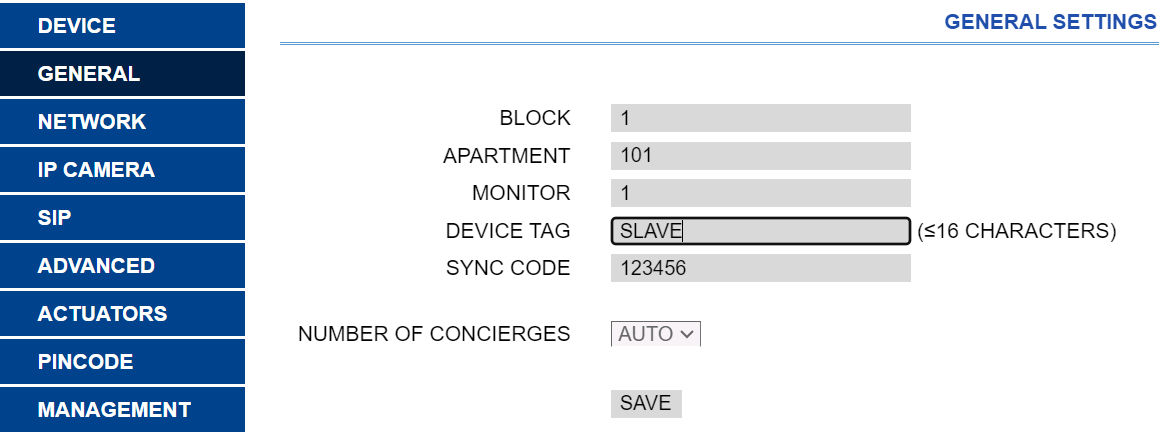

  • The rest of the monitors will belong to the same block and apartment, indicating a different monitor number.
  1. We can add up to 10 monitors by changing the monitor number.
  2. Remember that you can find help in the following video.
