For a MEET installation in a gated community, comprising:

• A digital panel at the main entrance to the site.
• Fenced detached houses.
• A dedicated access panel on each plot.

The recommended architecture is as follows:

Operation

Main entrance to the gated community

Ref 1832                          Ref 1455             Ref 1445

The digital panel at the main entrance is configured as a block panel.

• The visitor searches for or dials the house number.
• The call is routed to the MEET monitor in the house.
• The resident can activate the relay associated with the gate to the estate.

Access to the house plot

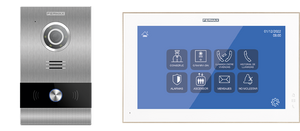

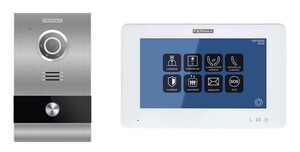

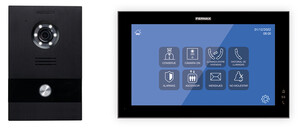

                  Ref 1508                                                                          Ref 1506                                                                   Ref 1507

Each property has a second MEET panel installed at the entrance to the plot.

• This panel is configured to call only the associated property.
• The call is routed to the same MEET monitor.
• The resident can open the pedestrian gate or plot gate using this panel’s relay.

• The resident can set their plot panel and the estate’s main entrance panel to auto-on mode.
• In homes where a 1506-1507 kit is installed, the Wit monitor acts as a home automation display; for this purpose, it is equipped with a second network card that allows the monitor to be connected to the home’s router and to control a home automation system compatible with the Fermax Wit display, as can be seen in home 4.

Advantages of MEET

• A single monitor can receive calls from multiple panels.

• Ability to distinguish the origin of the call (housing estate or individual plot).
• Independent management of access points.
• Simple integration over an IP network.
• Ability to forward calls to the MEET ME mobile app.

• Simple installation topology using structured cabling and connections between villas via the property’s switch.

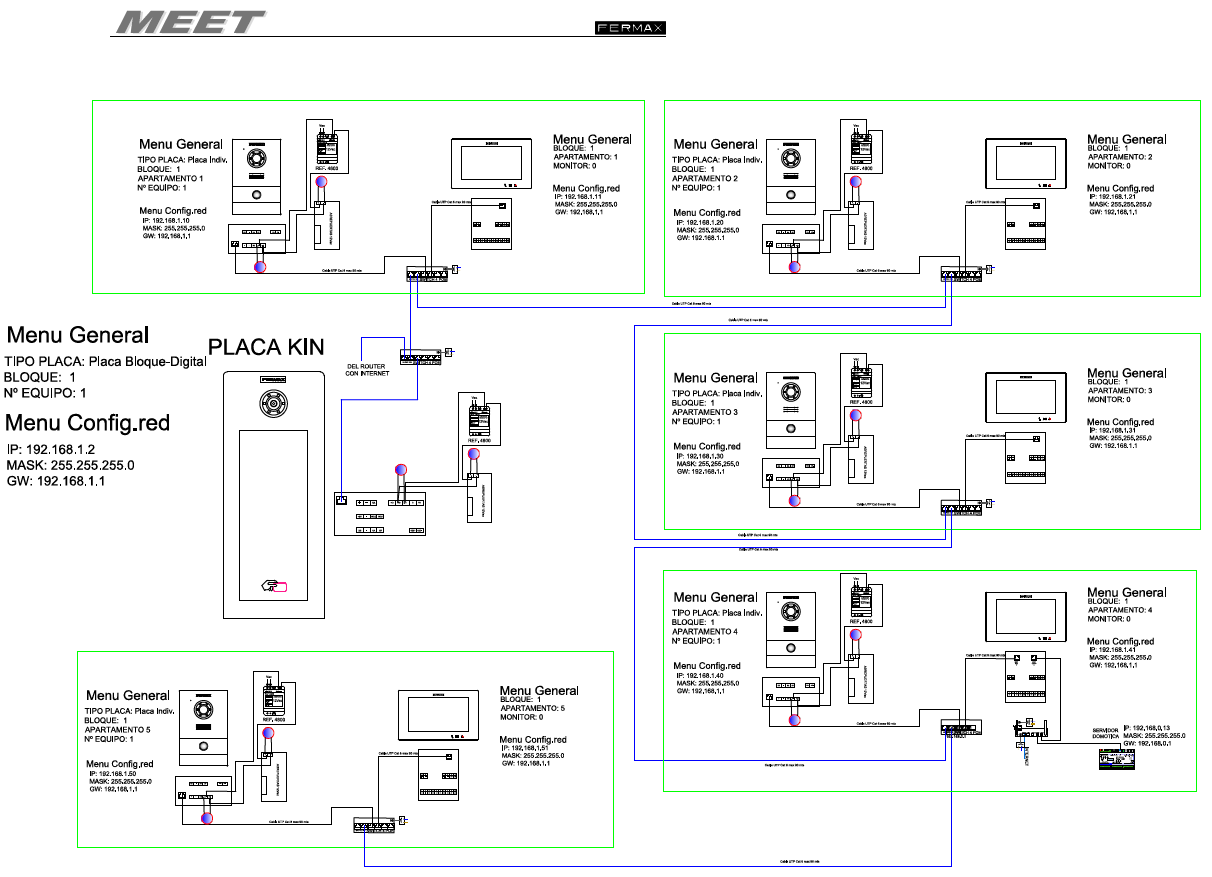

Wiring diagram and address configuration for the MEET system
