How do I set up my WIFI on my Way-Fi Plus ref. 1572 monitor?
You need to use the WayFi Plus app to connect to the app. We call this process pairing, you can complete it by following the steps in the app.
1. On the WIFI monitor, tap the screen to turn it on. To access the settings, scroll the main page to the left and tap the WIFI icon.

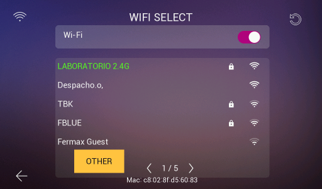

2. In this menu, select the WIFI SELECT option and enter the credentials of the 2.4GHz WIFI you wish to connect the monitor to.
In case the SSID of your WIFI is hidden, you will need to press the "Other" button in order to enter the SSID.

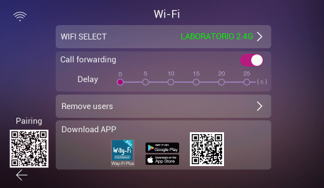

Once the monitor has successfully connected to the selected WIFI, a new pairing QR will appear:

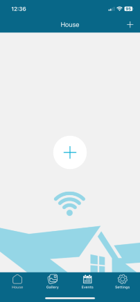

3. In the WayFi Plus app, select the + icon and then select Scan QR code.
4. Scan the pairing QR that appears on the side of the monitor screen in the WIFI menu.
