How do I set the outdoor panel output button to activate the gate (auxiliary relay output) instead of the pedestrian door (+S-S output)?
Accessing from the MAIN monitor to the main menu

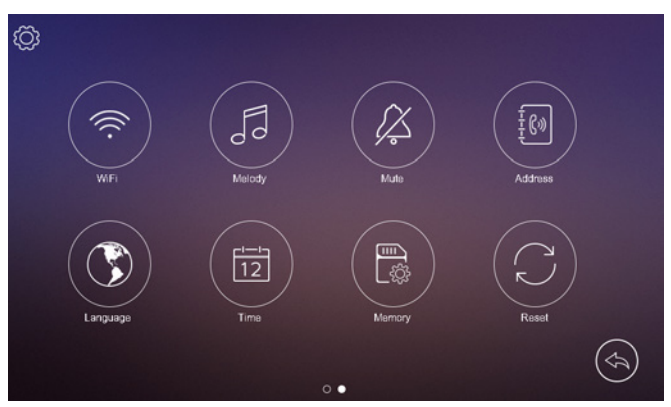

You must access the main menu by pressing the touch screen and then slide the screen to the left until you see the following menu

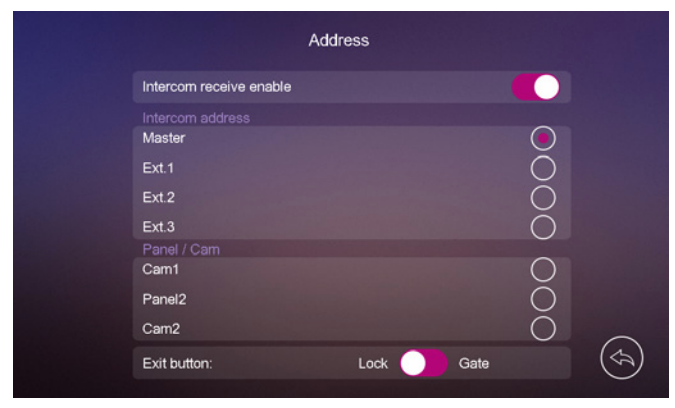

We will press on Direction where we will go to the next menu where we will find Exit button. Where Lock (is the +S-S output) and Door (is the gate connected to the auxiliary relay output).
