How do I configure an additional panel to the see-u kit?

How do I configure an additional panel to the see-u kit?

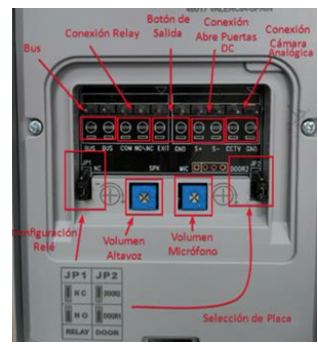

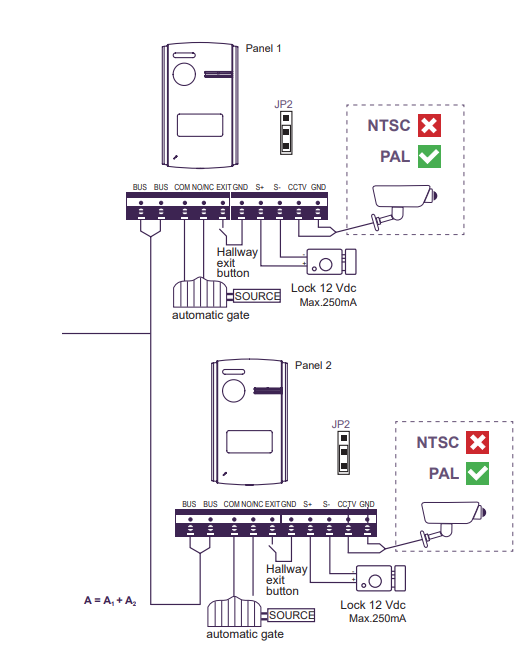

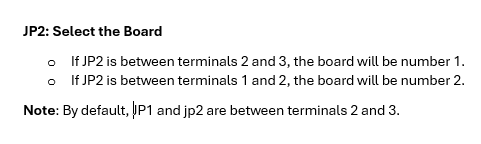

When adding an external entrance panel ref. 1395, the additional panel must be configured at the rear using jumper JP2, setting the jumper to position 1 and 2, indicating that it will be panel 2.
