[CORA] Installation of the Desfire Skyline reader ref. 7463 on a CORA S8 panel

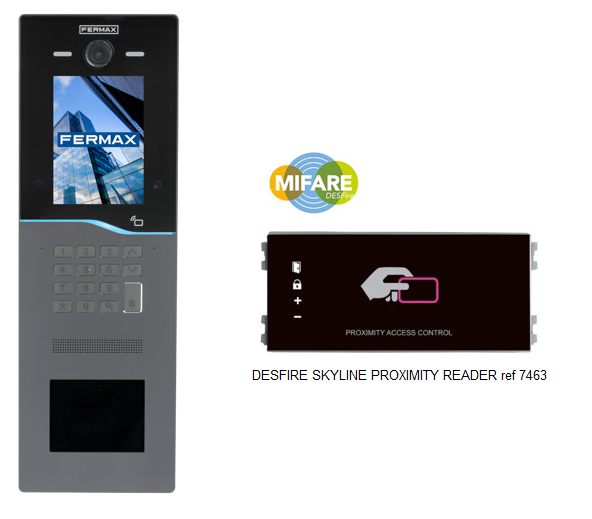

We can install the DESFIRE SKYLINE PROXIMITY READER ref 7463 on CORA S8 panels ref 7710. The accessory is included in reference Ref. 7720 CORA Proximity Front Viewer.
To do this, we will follow these steps:
1. You need to break the four plastic anchors on the Skyline reader. This can be done easily with a flat screwdriver:
2-. Using the same screwdriver, remove the right arm of the aluminium anchor bracket, as otherwise access to the terminal block will be blocked:
3. Finally, connect the power supply and data via the 4-wire molex-molex cable 940078 (2545) included in the 7720.
Between CN2 on the Desfire reader and CN1 on the CORA board.
In order to mount this reader in a surface-mounted box, it is necessary to request the special reference FFR77191.
