[CORA] Copy settings between Panels
To export the configuration from one panel to another, follow these steps:
On the old Panel:
- Activate the access point on the board and connect to the web server with installer credentials. If you have any questions, please consult the manual.
- Within the web server, go to the Maintenance > Maintenance section.
- Once in the maintenance section, press the export button in the Panel settings section.
Below is a video illustrating the process.
Once we have located the file with the configuration of the old board, we carry out the following steps:
On the new Panel:
- Activate the access point on the Panel and connect to the web server with installer credentials.
- Within the web server, go to Maintenance > Maintenance section.

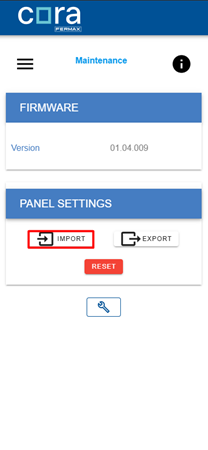

- Once in the maintenance section, click on the import button in the Panel settings section and select the file previously generated with the configuration.
With these steps, you can easily export the configuration between boards.
