Comparison of Fermax Kits by System
Below are some comparison tables of the kits available in their basic versions.

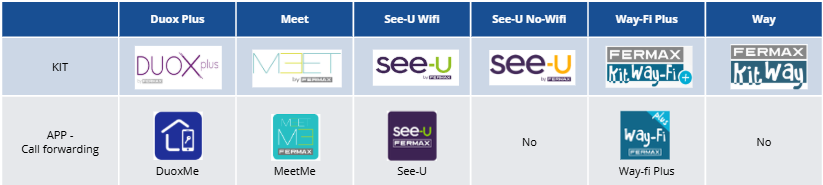

Connectivity
Can use the app to set up call forwarding.

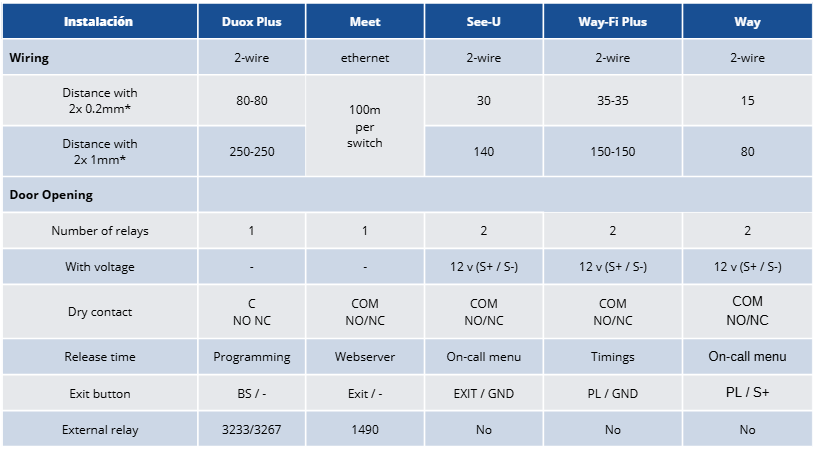

Installation
Physical installation parameters.
| Instalation | Way-Fi Plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | ||||||||||
| Wiring | 2-wire | 2-wire | 2-wire | 2-wire | 2-wire | ethernet | 2-wire | 4 + 1 per household | ||||||||||
| Distance with 2x0.2 mm* | 35-35 | 40-60 | 30 | 60-60 | 15 | 100m per switch | 80-80 | 150m | ||||||||||
| Distance with 2x1mm* | 150-150 | 40-80 | 140 | 80-80 | 80 | 250-250 | 2km(2.5) | |||||||||||
| Power supply | 32 vdc | 26vdc | 15vdc | 24vdc | 26vdc | POE / 12vdc | 24vdc | 12vac/vdc | ||||||||||
| Door Opening | ||||||||||||||||||
| Number of relays | 2 | 2 | 2 | 2** | 2 | 1 | 1 | 1 | ||||||||||
| Voltage | 12 v (S+ / S-) | 12 v (S+ / S-) | 12 v (S+ / S-) | 12 v (S+ / S-) | 12 v (S+ / S-) | |||||||||||||
| Dry contact | COM NO/NC | COM NO/NC | COM NO/NC | **Jump off PL / S+ | COM NO/NC | COM NO/NC | C NO NC | C NO NC | ||||||||||
| Release time | Timings | On-call menu | On-call menu | Command | On-call menu | webserver | Programming | No | ||||||||||
| Exit button | PL / GND | PL / S+ | EXIT / GND | PL / S+ | PL / S+ | Exit / - | BS / - | 01-mar | ||||||||||
| External relay | No | No | No | Yes (1418) | No | Yes (1490) | 3233/3267 | 2013 | ||||||||||
*The distance listed is the maximum verified distance at which it operates with cross-sections ranging from 2x0.2 mm to 2x1 mm, respectively.
**You can connect only one of the two types of relays, either the output relay or the dry contact relay by selecting which one to activate using the jumper on the outdoor device.
Configuration
For kits with more than one outdoor panel or monitor, you will need to configure them, either through the digital menu available on the devices or via physical jumpers or switches. The following section explains where to configure these settings.
| Way-Fi Plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | |
| Outdoor Panel | Swt. 1 y 2* | Jumper JP2 | Jumper JP2 | Name | Jumper JP2 | Number & IP | Number | - |
| Indoor Monitor | Master + (1-5) | Master + (1-2) | Master + (1-3) | Address (2 with video image) | Master + (1-2) | Number & IP | Address | - |
*Switch 1 indicates whether the panel is master or slave, and switch 2 indicates whether it is panle 1 or 2. In both cases, the values must be unique.

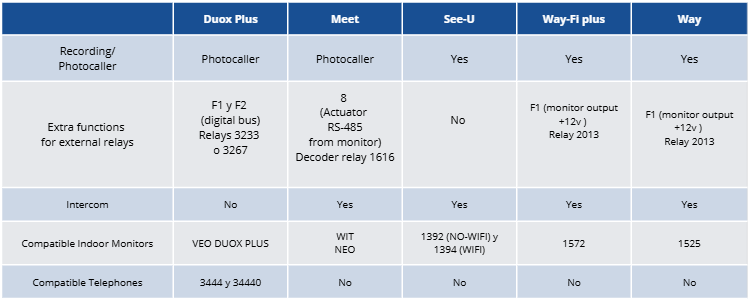

Functions
Additional options available.
| Way-Fi plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | |||||||||||
| Recording/Photocaller | Yes | Yes | Yes | No | Yes | Photocaller | Photocaller | No | ||||||||||
| Extra functions for external relays | F1 (+12V monitor output) Relay 2013 | F1 (digital bus) Relay 1418 | F1 (+12V monitor output) Relay 2013 | F1 y F2 (digital bus) Relays 3233, 3267 | F1, F2 (- output) Relay 2013 | |||||||||||||
| Intercom | Yes | Yes | Yes | Yes | Yes | Yes | No | No | ||||||||||
Photocaller only captures images.

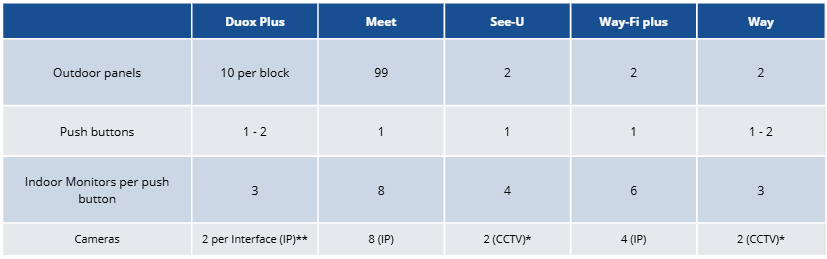

Number of devices
Total number of physical devices supported by each system.
| Way-Fi plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | |||||||||||
| Outdoor panels | 2 | 2 | 2 | 2 | 2 | 10 per block | 7 (switches) | |||||||||||
| Push buttons | 1 | 1 | 1 | 1 - 2 | 1 - 2 | 1 | 1 - 2 | 1 - 24 | ||||||||||
| Indoor Monitors per push button | 6 | 3 | 4 | With image 2 max. 4 | 3 | 8 per address | 3 per address | 3 + multiplier | ||||||||||
| Cameras | 4 (IP) | 2 (CCTV)* | 2 (CCTV)* | 2 (CCTV)* | 8 (IP) | 2 Interface IP | ||||||||||||
*One per Outdoor panel.
In both Meet and Duox, you need to add the RTSP string to add IP cameras.
In Way-Fi Plus, you add them via audio QR code or IP address once they've been added to the same network.
Protection
Impact and environmental protection rating for street signs.
| Way-Fi plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | |||||||||||
| IP | 44 | 44 | 54 | 43 | 44 | 54 | 47(Skyline) | 65(Marine) | 47 | |||||||||
| IK | 7 | 7 | 7 | - | 7 | - | - | 9(Marine) | - | |||||||||
IP44: Splash-proof, commonly used in bathrooms or covered outdoor areas.
IP54: Dust-proof and splash-proof, suitable for outdoor use and dusty areas.
IP65: Completely dust-tight and protected against water jets.
IK07: Impact of 2 joules (500 g at 40 cm).
IK09: Impact of 10 joules (5 kg at 20 cm).
Updating
How the firmware of installed devices is updated.
| Way-Fi plus | Way-Fi | See-U | Way | New Way | Meet | Duox Plus | 4N | |||||||||||
| Updates | SD / Cloud / App | auto | auo | No | SD | support | auto | No | ||||||||||
