Can I add two analogue aerial cameras to my see-u kit?

Can I add two analogue aerial cameras to my see-u kit?

If you only have one kit, with one outdoor panel, you will only be able to connect one aerial camera as it connects directly to the panel. If you add a second panel ref. 1395, you could also add a second ANALOG PAL camera that would be connected to this second panel.


    • Related Articles

    • [SEE-U] How to enable the CCTV camera in the SEE-U kit ref 1391.

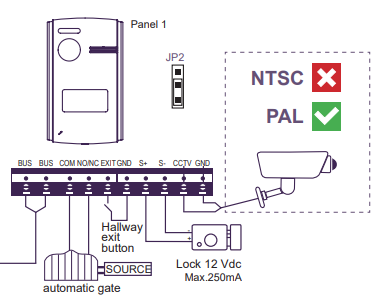

      The SEE-U kit panel allows us to connect an analogue aerial camera between the CCTV and GND terminals. Once the aerial camera has been installed on the outdoor panel, it must be enabled on the monitor, as it is disabled by default. The image of the ...
    • [SEE-U WIFI] How to modify the opening time on a VIDEO SEE-U WIFI KIT 7” 1L REF 1393.

      The VIDEO SEE-U WIFI KIT 7’ 1L REF 1393 allows us to modify the door opening time and the relay opening time (gate opening) through the monitor. To do this, we will follow the steps below: 1-. Turn on the monitor screen. Touching the screen activates ...
    • How do I add an additional monitor or board to my see-u kit?

      Below you can see how we would add an additional monitor or board. It is allowed to have with the kit up to 4 cascaded monitors including the one in the kit. The intermediate monitors will be configured like this and will be configured in the ...
    • Which SEE-U kit models are available?

      We have both the SEE-U WIFI Kit REF. 1393 and the See-u NO WIFI Kit REF. 1391 are distinguished by the monitor included in the kit. Both use the same outdoor panel and accessories but the monitor is different. WIFI Kit - WIFI Monitor ref. 1394 Kit NO ...
    • What extensions are possible with the See-u kits?

      The kits support up to 3 additional monitors (a total of 4 monitors) and up to 1 additional entrance panel (a total of 2 entrance panels). Each entrance panel could have a PAL analogue aerial CCTV camera connected to it for display on the monitor. ...
