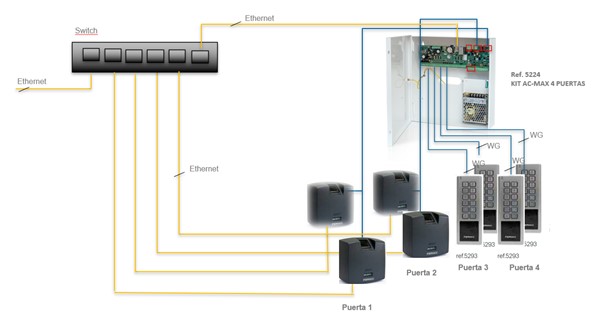

[AC-MAX] 5224Can I connect two doors with entry and exit fingerprints and another 2 doors with Wiegand entry and exit reader in a 4-door control panel?
Yes, since different types of readers can be combined in the control panel and it is also within the wiegand reader connection limit, which is up to 4.
