[AC-MAX] 5223 5224 I can't synchronise the control unit and I get the following error.

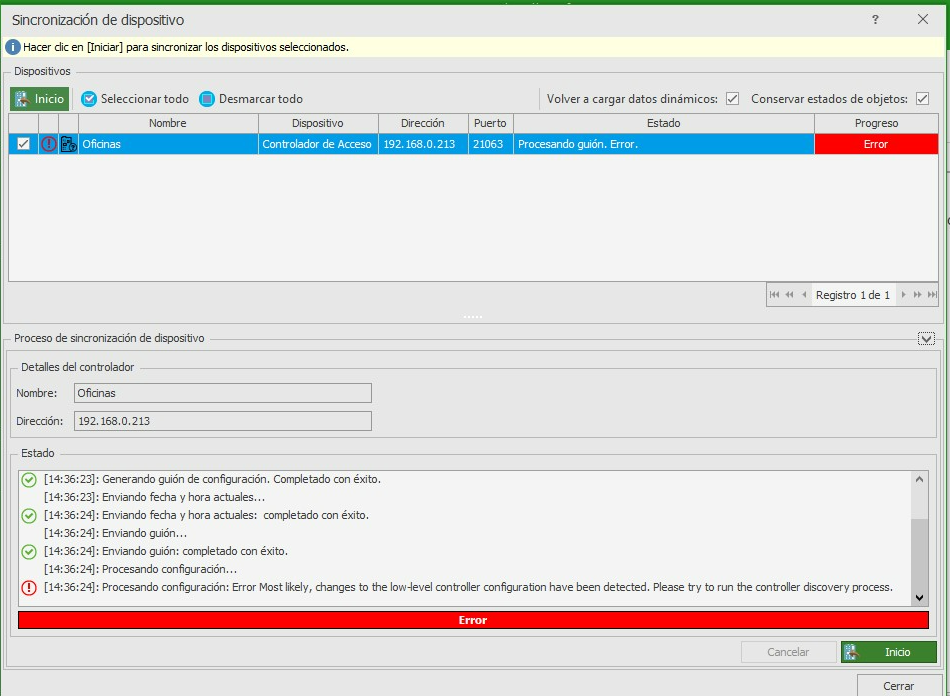

Error that appears in the synchronisation when the little arrow at the bottom right is displayed.

Processing configuration: Error Most likely, changes to the low-level controller configuration have been detected. Please try to run the controller discovery process.

This indicates that low-level changes have been made and the controller needs to be re-initialised/discovered.

So we will go with the mouse over the controller and with right button we will go to Commands-Execute device initialisation.

Finally synchronise again.
