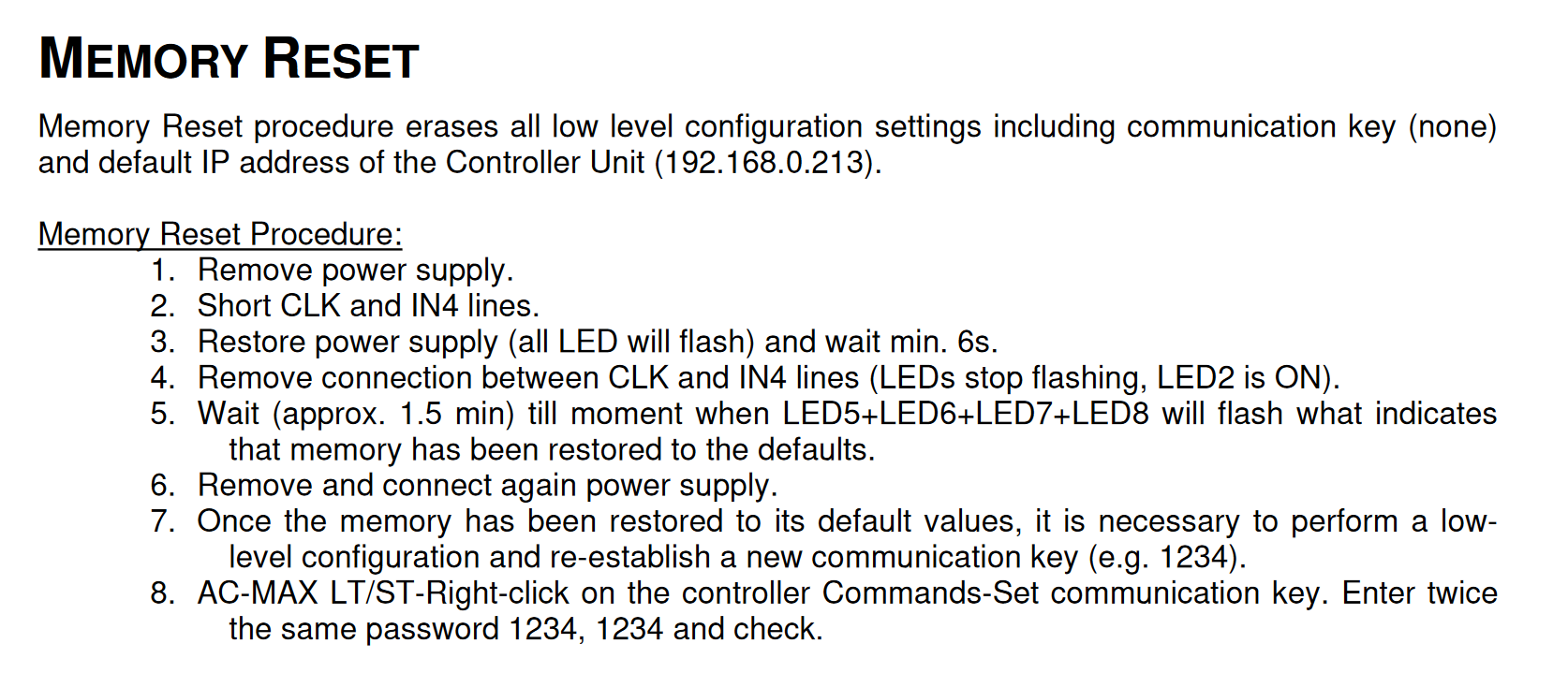

[AC-MAX] 5223 5224 Reset factory defaults AC-MAX 2/4-door kits

For point 7
1º Install AC-MAX HW
2º Connect to the control panel normally v1.7 without password (without the communication key, as it will no longer have a password when reset).
3º From Tools - establish the communication key 1234, 1234 and check.
4º After verifying that all the IP parameters are correct or if we want to change them and finally click on Send to device.
5º Then we will read from the device and we have to see the whole window with the letters in green.
6º At the end go to Device-Disconnect.
