[5190] How do I connect the WIEGAND 5190 CITY keypad to an external controller?

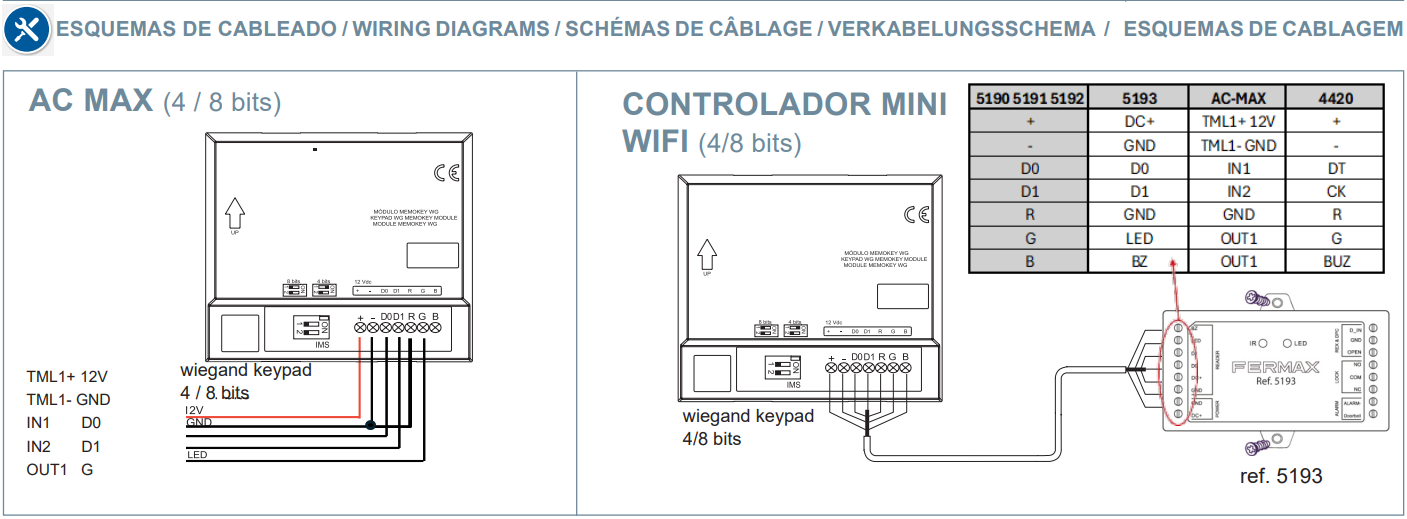

In the instructions provided in the product file on our website for ref. 5190, we find with the following diagram.
If the external controller is AC-MAX 5223 / 5224 or with the MINI WIFI CONTROLLER ref. 5193, we must make a bridge between the negative and the R so that the red LED remains lit whenever the keypad is powered.
